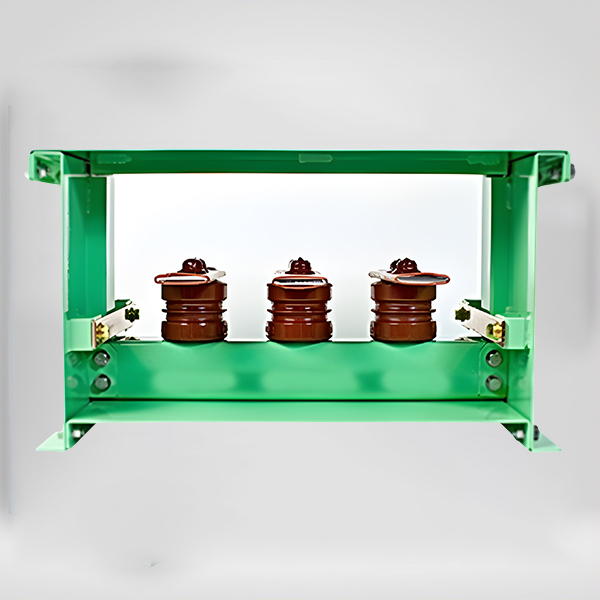

Busduct (NSPB)
Busduct (NSPB)

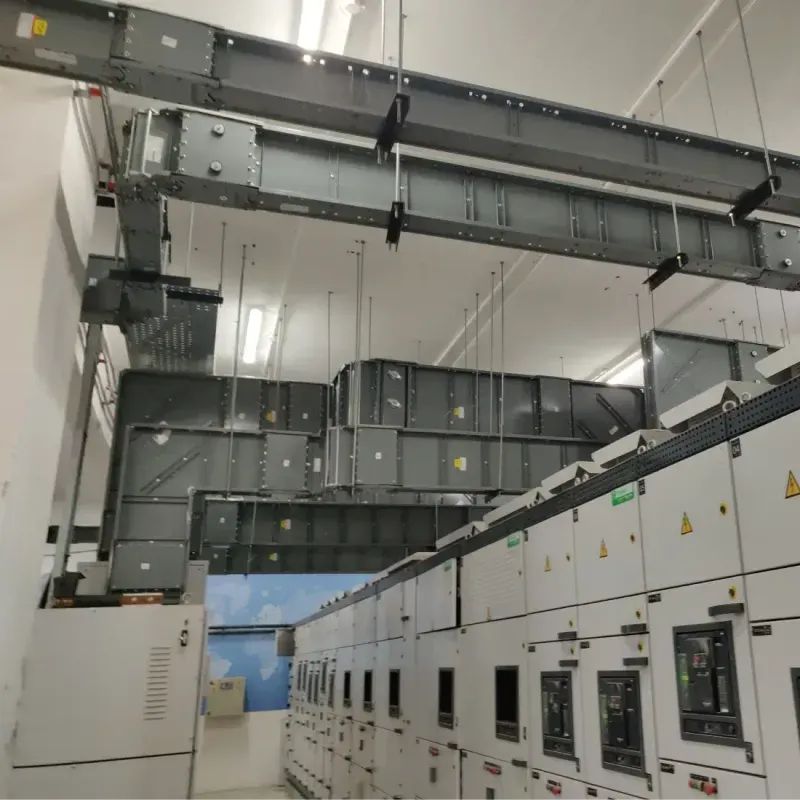

We at KEControls have the expertise to manufacture low voltage Non Segregated/Segregated phase bus duct with 3 phases 3 wires or 3 phases 4 wire system. These are rated up to 4000 Amps. The phase is housed in the common metallic enclosure in steel/Aluminum. The bus ducts have been tested for the short time withstand of 50 KA for 1 Sec. & confirms to IS- 61439. These are designed for IP the degree of protection as requirement. These are used to transmit/distribute power in the industrial utilities and other interconnections between switchgears.
Testing
All low voltage switchboards assemblies under go the routine tests by trained personnel. These test normally included.
- Visual Check
- Dimensional Check
- Conformity to Electrical diagram and ratings of components
- Functional Check.
- Insulation Test
- High Voltage Test
- Bend test thru NABL approved agency
- Galvanizing uniformity & coating thickness : at our Approved source Complete set of documents is supplied with each board i.e. electrical drawings and routine test reports.
| CNC Turret Punching Machine | 1 No |
|---|---|
| Press Brake Godrej 2500 x 4mm Sheet | 1 No. |
| Hand press different capacity | 4 Nos. |
| Hand shearing | 1 No. |
| Nibbling Machine | 1 No |
| Drill Machine | 4 Nos. |
| Welding Set different rating | 5 Nos. |
| Robi bus bar cutter | 1 No. |
| Jig saw | 1 No. |
| Sleeve Baking apparatus | 1 No. |
| Powder coating booth – 10’ x 6’ x 8’ high | 1 No |
| Banking Oven – 10’x8’x10’ high | 1 No |
| Air Compressor | 5 Nos. |
| Sheering Machine 80 Ton 2500x 4mm | 1 No |
| MIG Welding | 1 No. |
| MCB Channel Parting Machine | 1 No. |
| Power Press 100 ton & 50 ton | 2 Nos. |
| Lathe Size 8’-0” | 2 Nos. |
|---|---|
| Drill Machine – 25mm Cap. | 1 No. |
| Surface Grinder 24” Capacity | 1 No. |
| Milling Machine | 1 No |
| Vernier Gauge – 150 /300/600 mm | 3 Nos. |
|---|---|
| Dial Vernier – 150/300 | 2 Nos. |
| Micrometer – 0-25 mm | 2 Nos. |
| Stripping Machine | 1 No. |
| Temperature Indication Portable | 1 No |
| Tonge Tester | 1 No. |
| High Voltage Tester – 5 KV | 2 No. |
| Multimeter | 1 No. |
| Magger – 500V | 1 No. |
| Continuity Tester | 3 Nos |
| Load injector Kit | 1 No. |
| Coat Gauge for Powder | 1 No. |
